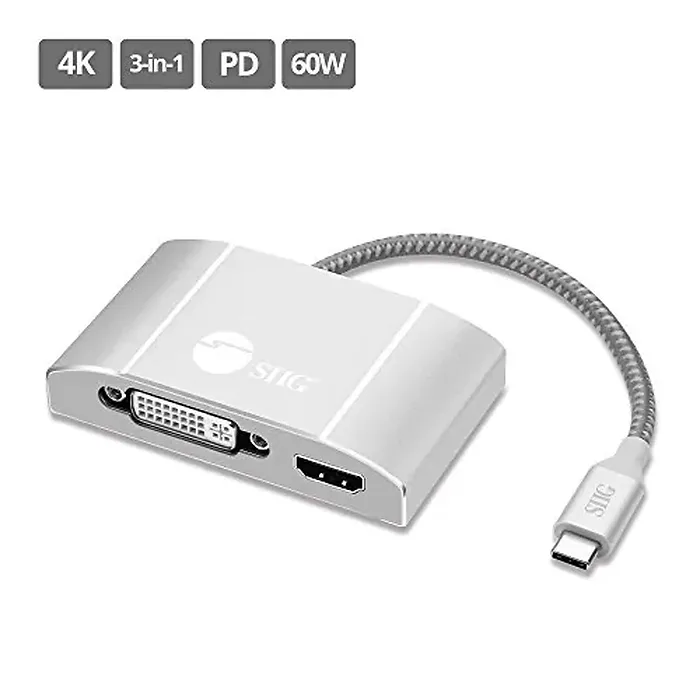

Siig CB-TC0911-S1 Video Adapter Usbc Left Connector Male Left Gender Vgadvihdmi Right Con
by Siig
| Price: | $43.04 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
Adds a HDMI, DVI, or VGA display and 60W PD charging to a USB-C DisplayPort alternate mode Power Delivery and Thunderbolt 3 enabled system. Easily adds a HDMI, DVI or VGA display to your USB-C DisplayPort Alternate (DP Alt) enabled Ultrabook, laptop or desktop. Note: The USB-C source connection must support DisplayPort Alternate Mode transmission in order for the adapter's video connectors to pass video and audio to the adapter. Supports UHD 4K@30Hz (HDMI) and HD 1080p@60Hz (DVI / VGA) resolutions. The adapter's USB Type-C Power Delivery port supplies up to 60 watts to power and charge your laptop computer. Compatible with ThunderboltTM 3 technology. Supports high quality 7.1ch audio through the adapter's HDMI output. Compact and lightweight design quickly adds an additional display, convenient to use at home, office or travel makes this the perfect add-on to your workstation or laptop. Bus-powered for extra portability, no need to take an external power adapter while on the go. Convenient plug and play operation, no driver installation required.
Specifications
Chipset: VL100Q4+PS176+ANX9833+PS8339B Supports USB-C DisplayPort alternate mode input and Thunderbolt 3 Supports DisplayPort 1.2, 1.62 Gbps, 2.7 Gbps, and 5.4 Gbps data rates System Interface:USB Type-C
DisplayPort Alt
Power Delivery
Thunderbolt 3TM technology Power Delivery (PD):
Total power output: 60 watts (Max)
5V/2A
12V/1.5A
12V/3A
12V/5A
20V/3A Resolution:
HDMI: Up to 3840x2160 at 30Hz
DVI: Up to 1920x1080 at 60Hz
VGA: Up to 1920x1080 at 60Hz
Note: Only one video output can be used at a time Product:
Color: Silver
Material: Aluminum Connectors:
1x 24-pin USB-C, Male, Input
1x 19-pin HDMI, Female, Output
1x 29-pin DVI, Female, Output
1x 15-pin D-Sub VGA, Female, Output
1x 24-pin USB Type-C, Female, Power Delivery, 60W Environmental conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 140 degrees F
Relative humidity: 10% to 90% non-condensing
Certifications/Standards:
FCC, CE, RoHS Item Dimension (L inchxW inchxH inch)
4 x 6 x 2
Weight
1.00lb
Warranty Information
2 years
